TP020EH-X/TP020FH-X
TPOWERTEC
TP0036
USB-C 5V/3A,9V2.22A/12V1.67A/USB-A 5V3A,9V2A,12V1.5A
20W
AC 100-240V 50/60Hz 0.6A
| Availability: | |
|---|---|
| Quantity: | |

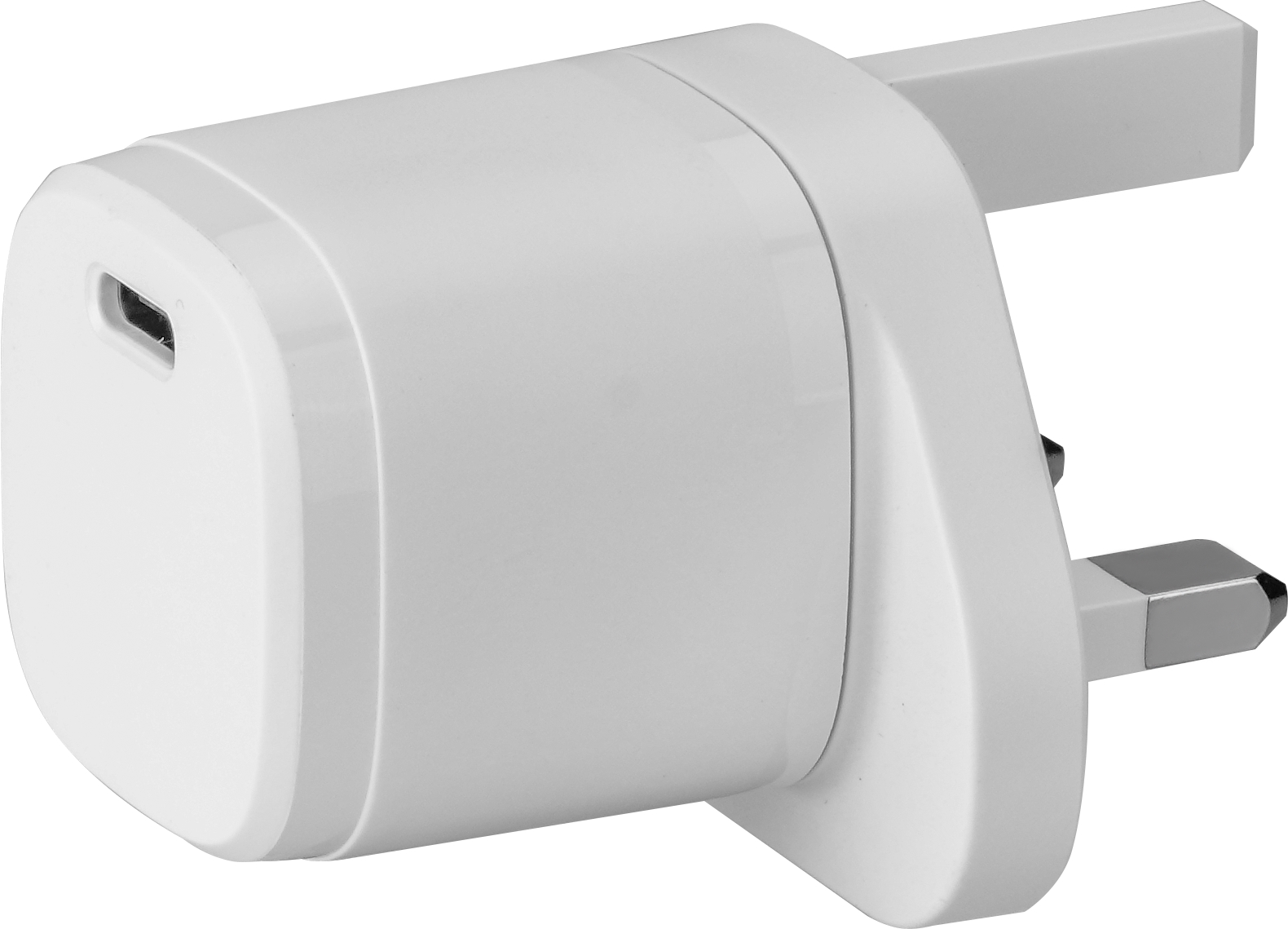

TP020EH-X
Input : AC 100~240V 50/60Hz
Output: USB-C PD 3.0 5V/3A,9V/2.22A,12V/1.67A 20W max
Dimension:((L)34.3*(W)33*(H)42.8mm
Ssfety standard:IEC/UL 62368
EMC standard:PART 15 Subpart B

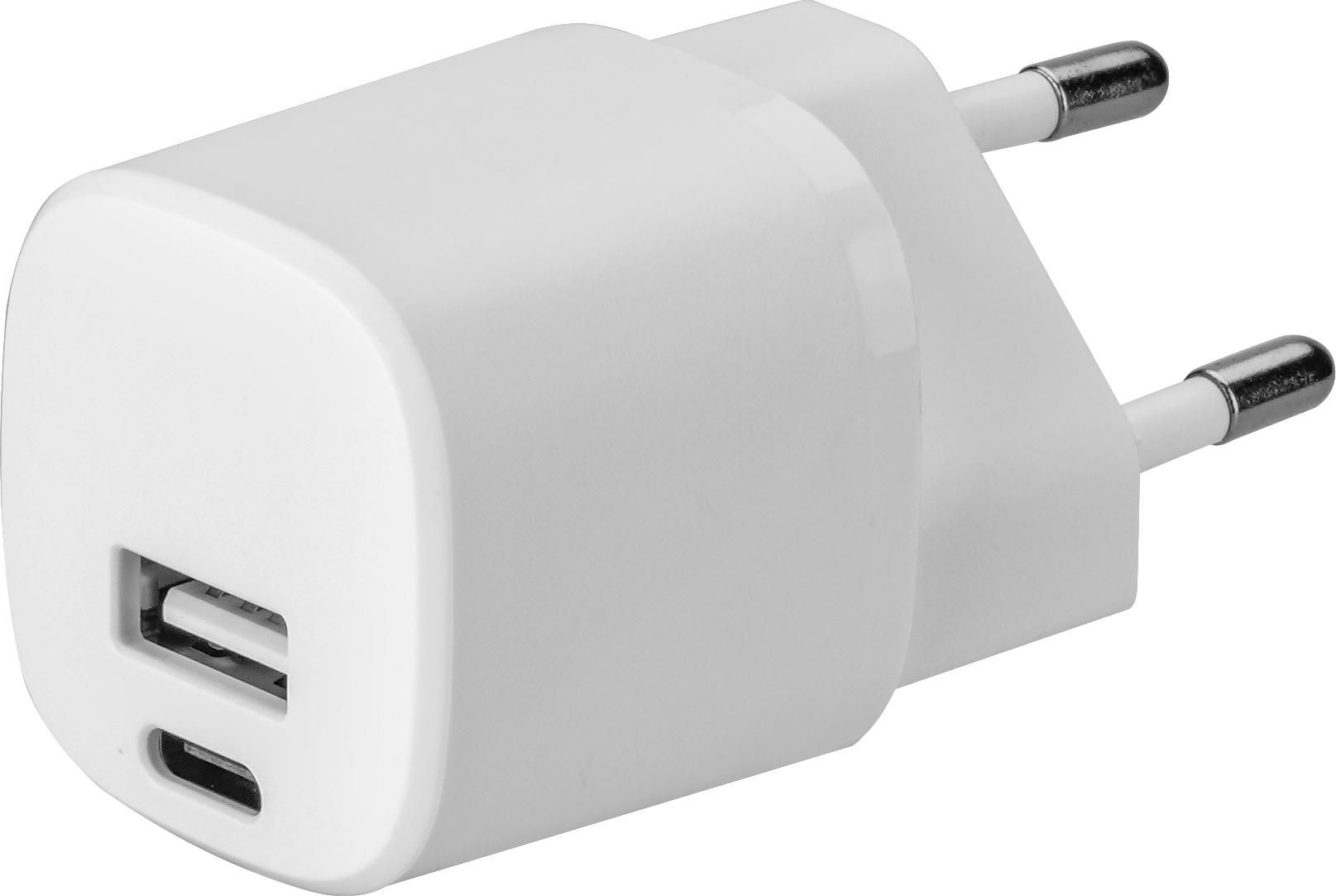

TP020FH-
Input : AC 100~240V 50/60Hz
Output: USB-C PD 3.0;5V/3A,9V/2.22A,12V/1.67A 18W max
USB-A QC3.0 3.6-6V /3A,6-9V/2A,9-12V/1.5A 18W max
Working Scenario :
*Only USB-C port working: Max 18W output, supporting PD or QC 3.0,PPS
*Only USB-A port working: Max 18W output, supporting QC 3.0
*Both ports working: No PD or QC output, together deliver max 5V 3.0A output
Dimension:((L)34.3*(W)33*(H)42.8mm
Ssfety standard:IEC/UL 62368
EMC standard:PART 15 Subpart B
TP020EH-X
Input : AC 100~240V 50/60Hz
Output: USB-C PD 3.0 5V/3A,9V/2.22A,12V/1.67A 20W max
Dimension:((L)34.3*(W)33*(H)42.8mm
Ssfety standard:IEC/UL 62368
EMC standard:PART 15 Subpart B
TP020FH-
Input : AC 100~240V 50/60Hz
Output: USB-C PD 3.0;5V/3A,9V/2.22A,12V/1.67A 18W max
USB-A QC3.0 3.6-6V /3A,6-9V/2A,9-12V/1.5A 18W max
Working Scenario :
*Only USB-C port working: Max 18W output, supporting PD or QC 3.0,PPS
*Only USB-A port working: Max 18W output, supporting QC 3.0
*Both ports working: No PD or QC output, together deliver max 5V 3.0A output
Dimension:((L)34.3*(W)33*(H)42.8mm
Ssfety standard:IEC/UL 62368
EMC standard:PART 15 Subpart B
