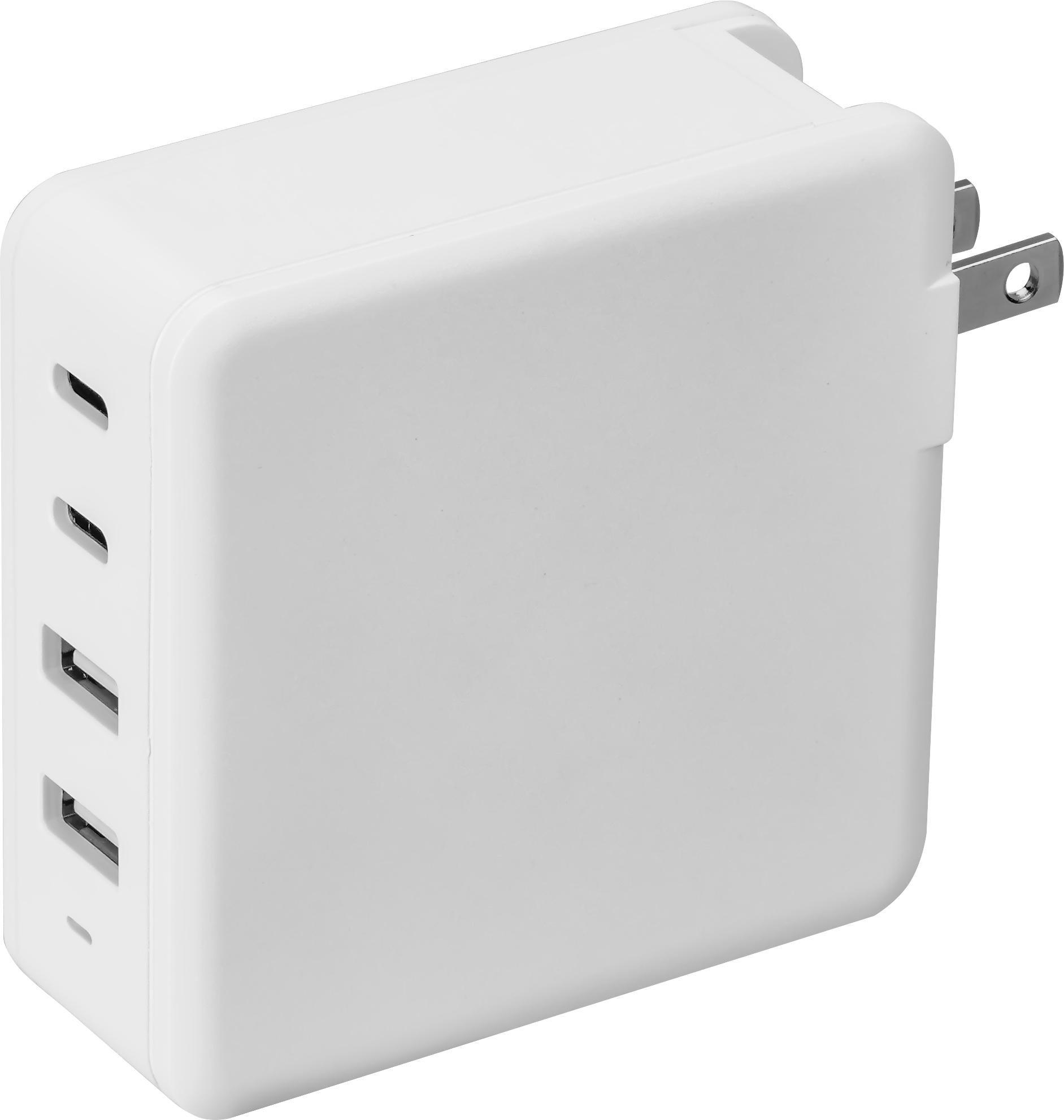

TP120CH-X
TPOWERTEC
TP0041
USB-C 5V/3A,9V3A/12V3A/15V3A/20V5A
125W
AC 100-240V 50/60Hz 2.5A
| Availability: | |
|---|---|
| Quantity: | |
MODEL:TP120CH-X
Input : AC 100~240V 50/60Hz 2.5APFC >0.95
Working Scenario :
Single port working:
USB-C1/C2:
3.3-21V3A, 5V3A,9V3A,12V3A,15V3A,20V5A 100W max
USB-A1/A2
:4.5V5A,5V4.5A,5V3A,9V2.77A,12V2.25A 25W max
Dual port working :
C1/C2+A1/A2：100W+25W
C1+C2:100W+25W
A1+A2:5V4.8A
3 port working:
C1+C2+A1/A2:60W+25W+25W
C1/C2+（A1+A2）:100W+5V4.8A
4 port working:
C1+C2+（A1+A2）:60W+25W+5V4.8A
Dimension:(L)75*(W)75*(H)30mm
Ssfety standard:IEC/UL 62368
EMC standard:PART 15 Subpart B
MODEL:TP120CH-X
Input : AC 100~240V 50/60Hz 2.5APFC >0.95
Working Scenario :
Single port working:
USB-C1/C2:
3.3-21V3A, 5V3A,9V3A,12V3A,15V3A,20V5A 100W max
USB-A1/A2
:4.5V5A,5V4.5A,5V3A,9V2.77A,12V2.25A 25W max
Dual port working :
C1/C2+A1/A2：100W+25W
C1+C2:100W+25W
A1+A2:5V4.8A
3 port working:
C1+C2+A1/A2:60W+25W+25W
C1/C2+（A1+A2）:100W+5V4.8A
4 port working:
C1+C2+（A1+A2）:60W+25W+5V4.8A
Dimension:(L)75*(W)75*(H)30mm
Ssfety standard:IEC/UL 62368
EMC standard:PART 15 Subpart B
