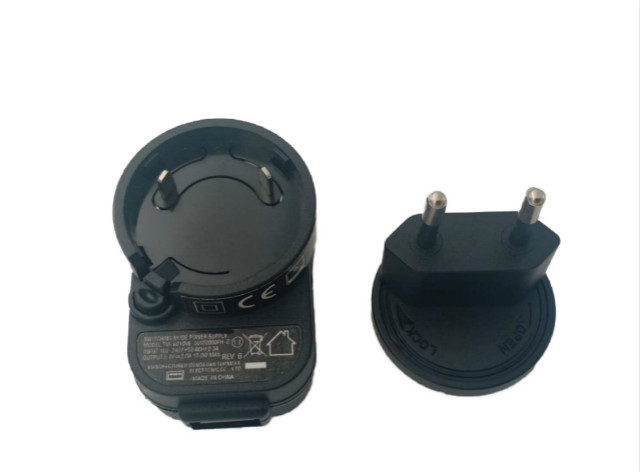

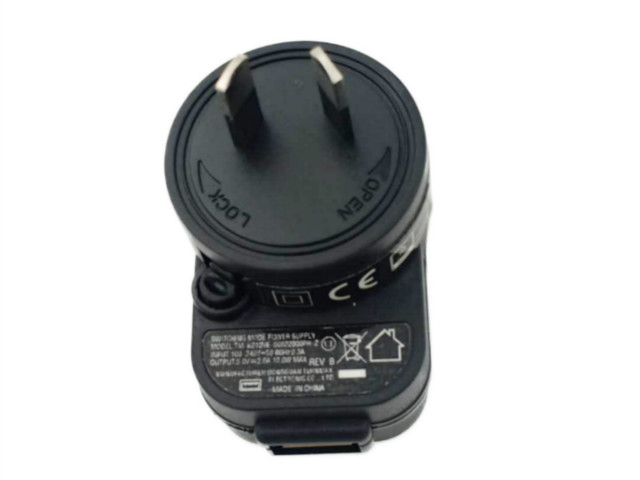

TP010A
TPOWERTEC
5V 2A
10W
100-240V 50/60Hz 0.35
| Availability: | |
|---|---|
| Quantity: | |
work environment
Working temperature：-10℃ - 45℃
Storage temperature：-20℃ - 70℃
The temperature：5%-95%RH
Electrical parameters
Atypical output：5V2A
output voltage：DC 5-5.5V
output current：0.5-2A
Rated input voltage: 100-240 vac
Input voltage range: 90-264 vac
Input frequency: 50/60hz
Input current: 350mA(RMS) Max @90Vac
Input current: 30A max-240vac
No-load power consumption: 0.075w Max
Energy efficiency:
Safety standard: IEC 61558/ UL1310
Emc standard: Part 15 SU currency Part B
work environment
Working temperature：-10℃ - 45℃
Storage temperature：-20℃ - 70℃
The temperature：5%-95%RH
Electrical parameters
Atypical output：5V2A
output voltage：DC 5-5.5V
output current：0.5-2A
Rated input voltage: 100-240 vac
Input voltage range: 90-264 vac
Input frequency: 50/60hz
Input current: 350mA(RMS) Max @90Vac
Input current: 30A max-240vac
No-load power consumption: 0.075w Max
Energy efficiency:
Safety standard: IEC 61558/ UL1310
Emc standard: Part 15 SU currency Part B
